Product Details:
|
| Condition: | New, New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Construction Works , Advertising Company |
|---|---|---|---|
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 3 Month | Core Components: | Glass Fiber |
| Warranty: | 1 Year | Replace: | SOFIMA CCH152CD1 |
| Application: | Hydraulic Oil Filter | Material: | Important Glass Fiber |
| Function: | Oil Removal | MOQ: | 1pcs |
| Structure: | Cartridge Filter | OEM: | Available |
| Service Life: | 5000h | After Warranty Service: | Video Technical Support, Online Support |
| Local Service Location: | None | After-sales Service Provided: | Online Support |
Hydraulic industrial systems are used wherever large and heavy goods are moved.
Liquids under pressure and the volume flow in the lines generate hydraulic energy, which the so-called consumer, in many cases a hydraulic cylinder, converts into mechanical energy. In order to maintain the circuit in a closed hydraulic system, the hydraulic fluids must be cleaned efficiently during operation. BangMao offers various filter systems that deliver excellent separation results over long periods, even at high pressure.
Filtration Group designed high-performance hydraulic filters for manufacturers of aggregates and injection molding machines, utilizing an innovative, advanced filter media technology at the heart of the element construction to guarantee long lasting performance. BangMao filter elements are more robust and pressure-resistant than comparable inserts because the pleated filter element is pressed firmly against the inner frame of the cylinder. In addition, 30 percent more dirt remains on the fiberglass layers.

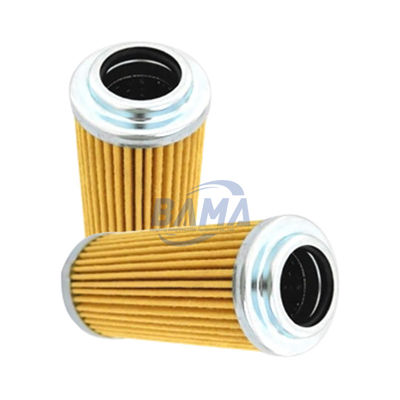

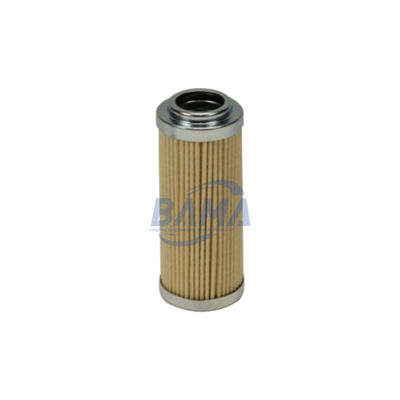

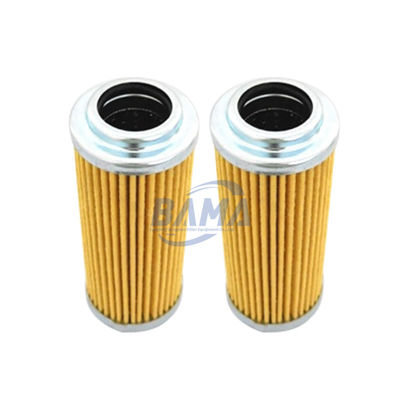

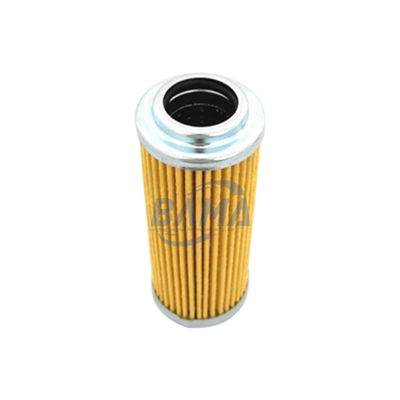

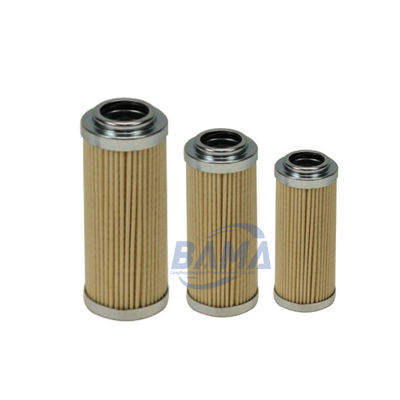

| Model: | CCH152CD1 |
| Area of application: | Hydraulics |
| Max. permissible differential pressure [bar]: | 21 |
| Filter medium: | Cellulose |
| Filtration fineness [µm (c)]: | ß10 = 2 |
| Seals - material: | NBR |
| Perm. Continuous operating temperature: | -25 ° C to + 120 ° C |
| Manufacturer: | BangMao |
The hydraulic filter element is mainly used for
1, Construction machinery (excavators, drilling RIGS, pile drivers, Forklifts, loaders, pavers, etc.)
2, Large CNC machine tool
3, Power plant (wind, hydraulic, thermal) fuel resistance, jacking pump, coupler, gearbox, coal mill, flush, oil filter, etc., steel mill, hydraulic pump station, lubricating system, port machinery, etc
4, Printing machine, warp knitting machine
