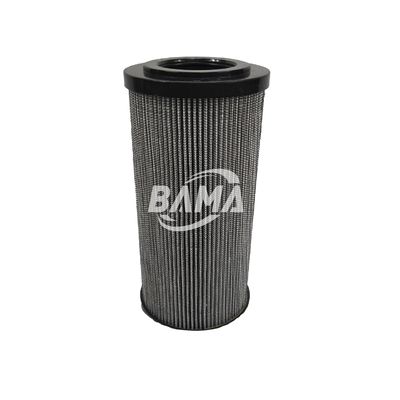

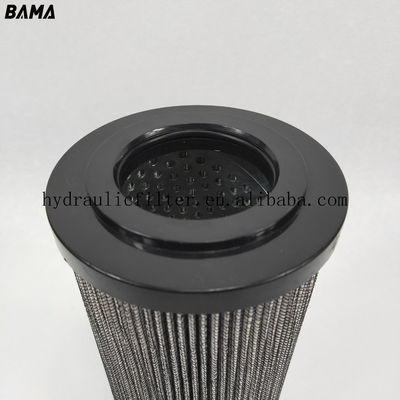

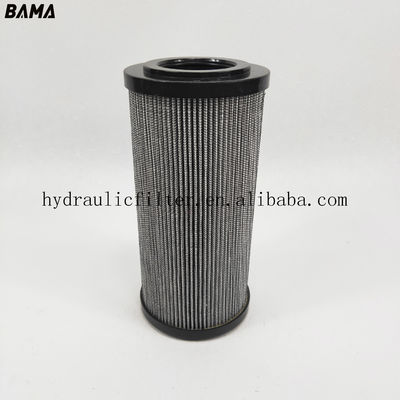

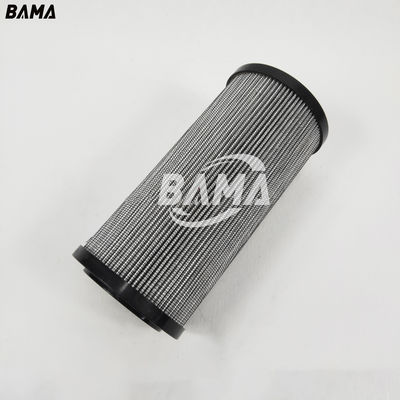

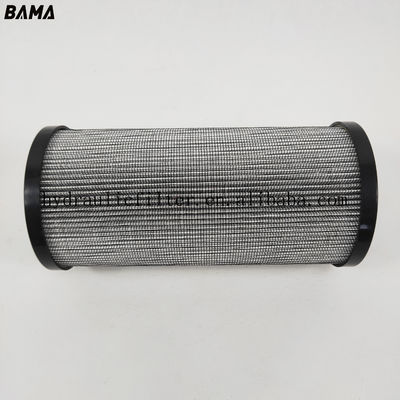

Product Details:
|
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
|---|---|---|---|
| Weight (KG): | 1 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 3 Month |
| Core Components: | Glass Fiber | Warranty: | 1 Year |
| Weight [kg]: | 1 | Area Of Application: | Hydraulics |
| Gaskets - Material: | NBR | Filter Medium: | Glass Fiber |
| Max. Differential Pressure [bar]: | 10 | Filter Fineness [um]: | B27=1000 |
| Bypass Valve Opening Pressure [bar]: | 1.7 | Permitted Continuous Use Temperature: | -25°C To +120°C |
| Port: | Tianjin Qingdao Shanghai Ect |
Performance Data | Dimensional Specifications | Physical Specifications | |
Micron Rating:25.00ABSOLUTE | (A) Outer Diameter, Top:2.75IN | Handle:NONE | |
Beta Rating: B25=200 | (B) Outer Diameter, Bottom:2.75IN | Seal Material: BUNA-N | |
Collapse Pressure Rating: | (C) Inner Diameter, Top:1.16IN | Type of Adhesive: | |
Maximum Temperature:248F | (D) Inner Diameter, Bottom: | Type of Endcap:PLATED STEEL | |

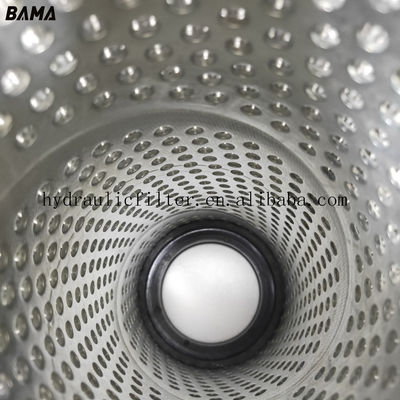

Direction of Flow: OUTSIDE->IN | (E) Length:3.34IN | Center Tube:PLATED STEEL | |
Get the quote by contacting us | Type of Media:MICROGLASS | ||
Filter Area: 128SQ.IN. | |||
Plating: | |||
Outer Jacket:NONE | |||
Configuration:SINGLE OPEN END | |||
