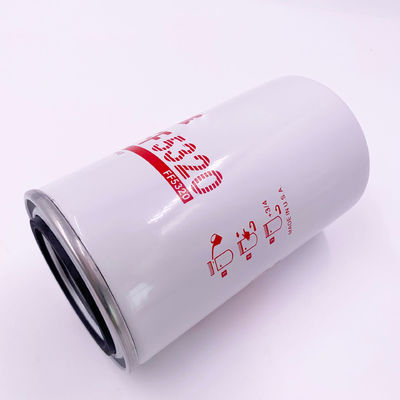

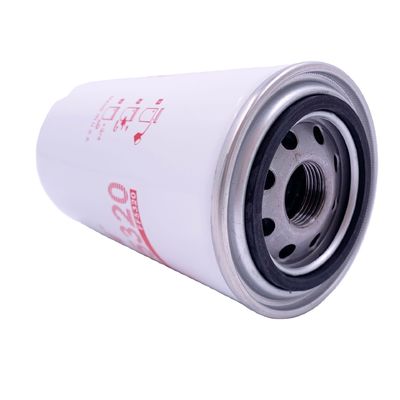

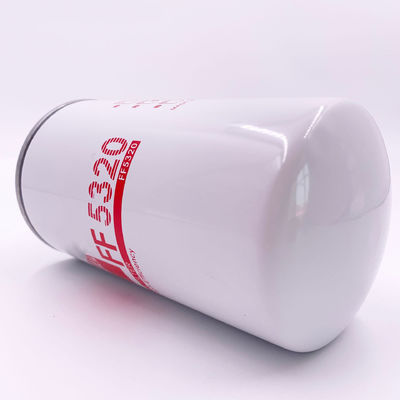

Product Details:
|
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
|---|---|---|---|
| Weight (KG): | 1 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 3 Month |
| Core Components: | Glass Fiber | Warranty: | 1 Year |
| Weight [kg]:: | 1 | Field Of Application: | Fuel Filtration |
| Connection Thread: | 1-14 UNS-2B | Outer Diameter [mm]: | 93.47 |
| Height [mm]: | 176.28 | Seal-outer Diameter [mm]: | 71.88 |
| Seal-inner Diameter [mm]: | 62.48 |
Performance Data | Dimensional Specifications | Physical Specifications | |
MICRON RATING:4.00 ABSOLUTE | (A) OUTER DIAMETER, TOP:3.68 IN (93.47 MM) | HANDLE:NONE | |
BETA RATING: | (B) OUTER DIAMETER, BOTTOM:3.68 IN (93.47 MM) | Seal Material:BUNA-N | |
COLLAPSE PRESSURE RATING: | (C) INNER DIAMETER, TOP: | Type of Adhesive： | |
MAXIMUM TEMPERATURE: | (D) INNER DIAMETER,BOTTOM: | TYPE OF ENDCAP:PLATED STEEL | |

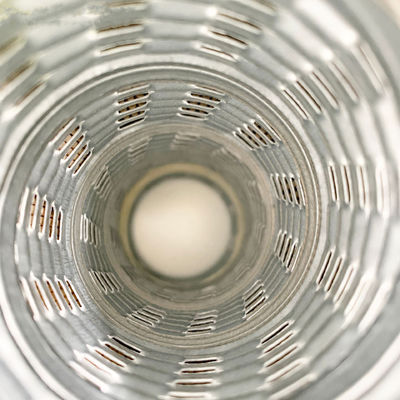

DIRECTION OF FLOW:OUTSIDE->IN RECOMMENDED CHANGEOUT DIFFERENTIAL PRESSURE:20 PSID | (E) LENGTH:6.94 IN (0.00 MM) (F) THREAD:1-14 UNS-2B | CENTER TUBE:STEEL | |
Get the quote by contacting us | TYPE OF MEDIA:PAPER | ||
FILTER AREA:SQ.IN. | |||
PLATING:ELECTROTIN PLATED | |||
OUTER JACKET:YES | |||
CONFIGURATION:SINGLE OPEN SPIN ON | |||
