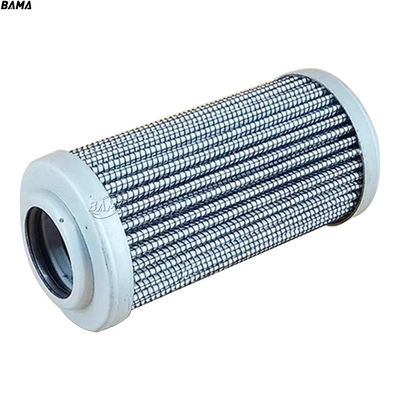

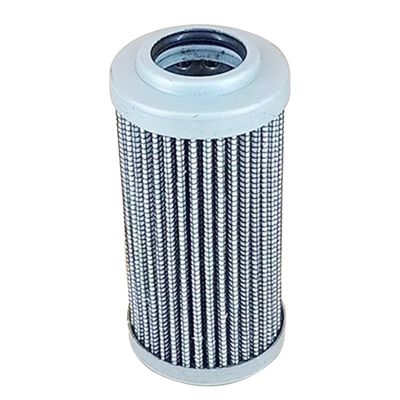

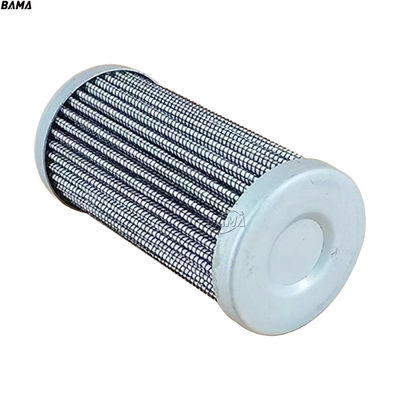

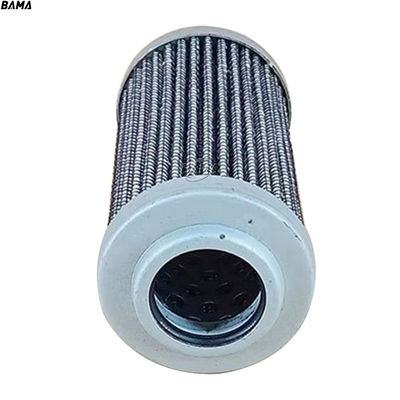

Product Details:
|
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
|---|---|---|---|
| Weight (KG): | 1 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2020 | Warranty Of Core Components: | 3 Month |
| Core Components: | Glass Fiber | Warranty: | 1 Year |
| Weight [kg]: | 1 | Area Of Application: | Hydraulics |
| Filter Medium: | Glass Fibre | Filter Fineness [μm]: | B4,5=1000 |
| Zul. Continuous Operating Temperature: | -25°C To +120°C | Seals-Material: | NBR |
| Max. Will. Differential Pressure [bar]: | 21 | Port: | Tianjin Qingdao Shanghai Ect |
Performance Data | Dimensional Specifications | Physical Specifications | |
MICRON RATING:3.00 ABSOLUTE | (A) OUTER DIAMETER, TOP:2.00 IN (50.80 MM) | Handle:NONE | |
BETA RATING:B3 = 200 | (B) OUTER DIAMETER, BOTTOM:2.00 IN (50.80 MM) | SEAL MATERIAL:BUNA-N | |
COLLAPSE PRESSURE RATING:150 PSID | (C) INNER DIAMETER, TOP:1.00 IN (25.40 MM) | TYPE OF ADHESIVE:EPOXY | |
MAXIMUM TEMPERATURE:250 F | (D) INNER DIAMETER,BOTTOM: | TYPE OF ENDCAP:PLATED STEEL | |
Direction of Flow: OUTSIDE->IN | (E) LENGTH:4.67 IN (0.00 MM) | CENTER TUBE:PLATED STEEL | |
Get the quote by contacting us | TYPE OF MEDIA:MICROGLASS | ||
FILTER AREA:SQ.IN. | |||
PLATING:ZINC PLATED | |||
OUTER JACKET:NONE - NONE | |||
CONFIGURATION:SINGLE OPEN END | |||
